henninger centre grinding machines
perfect runout starts at the centre
Center grinding machines are used wherever the center hole serves as a highly precise reference for the entire downstream machining process. They create the foundation for maximum concentricity and ensure that multiple functional diameters of a component remain perfectly coaxial. At the same time, ground centers enable permanently repeatable positioning during multiple reclamping operations across different manufacturing stages.
Particularly for long and slender workpieces, precision center grinding ensures accurate alignment while maintaining parallelism and straightness throughout machining. Even after heat treatment processes — where components may distort and center holes lose accuracy — center grinding reliably restores the geometric reference. In high-precision manufacturing applications, it therefore forms the essential basis for achieving the tightest tolerances and maximum functional reliability.
Every machine from Henninger is fully developed, engineered, and manufactured in Germany with the goal of combining maximum quality and reliability with advanced manufacturing technology. The result is center grinding machines “Made in Germany” that set industry standards in runout optimization, surface finish quality, and production efficiency.
vertical centre grinding machines
for centre grinding of vertical workpieces
zs 1
for work pieces up to max: 5 kg | 250 mm | 10 mm centre Ø
The ZS 1 is designed for the precise machining of small components and, thanks to its compact design, is ideally suited for flexible and mobile applications.
Its simple operation enables quick commissioning and efficient use in everyday production environments.
In addition to manual operation, automation is also available as an option.

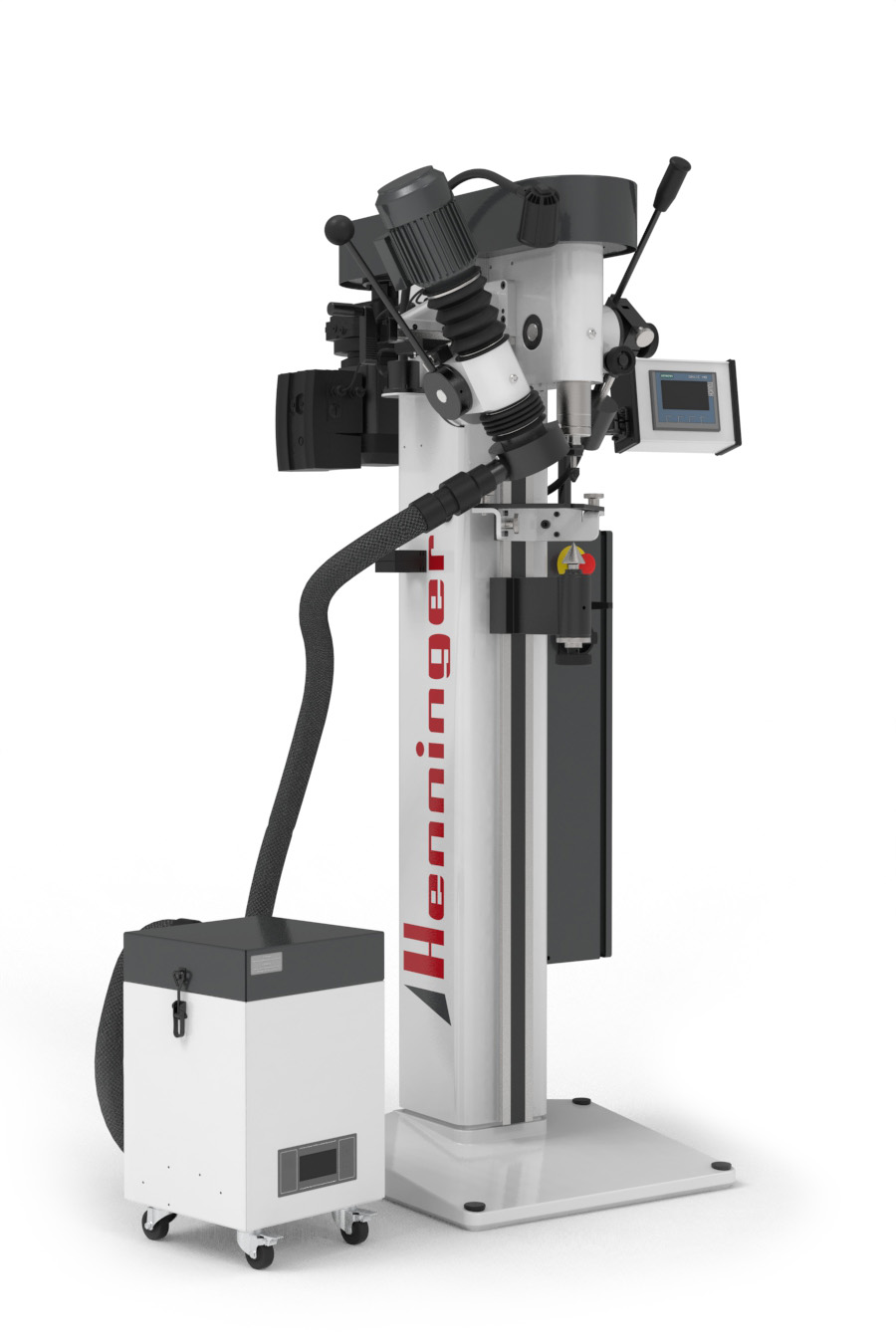

zss k22
for work pieces up to max: 50 kg | 1500 mm | 120 mm centre Ø
The ZSS K22 is specialized in the ultra-precise generation of roundness within center holes.
It achieves roundness deviations of less than 1 µm and is ideal for applications with the highest accuracy requirements.
Short process times and simple operation enable efficient and repeatable machining.

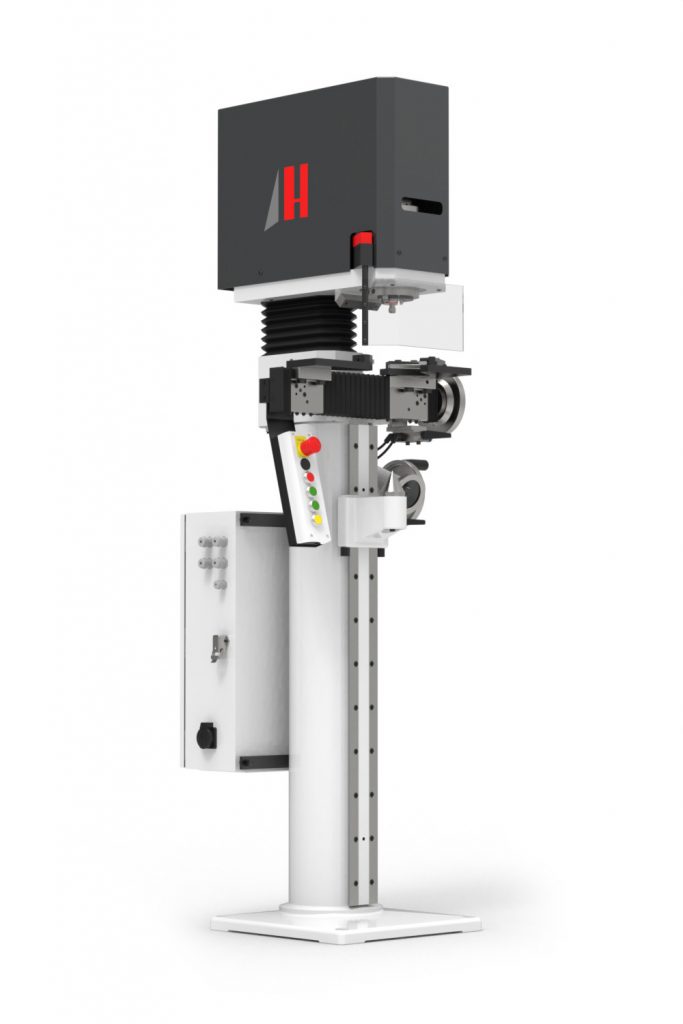

zs 100
for work pieces up to max: 100 kg | 1160 mm | 70 mm centre Ø
The ZS 100 series is a flexible center grinding machine for small to medium-sized workpieces.
It is suitable for individual parts as well as small and medium production batches and provides precise and reliable machining of center holes.
A wide range of options allows the machine to be adapted to different requirements.

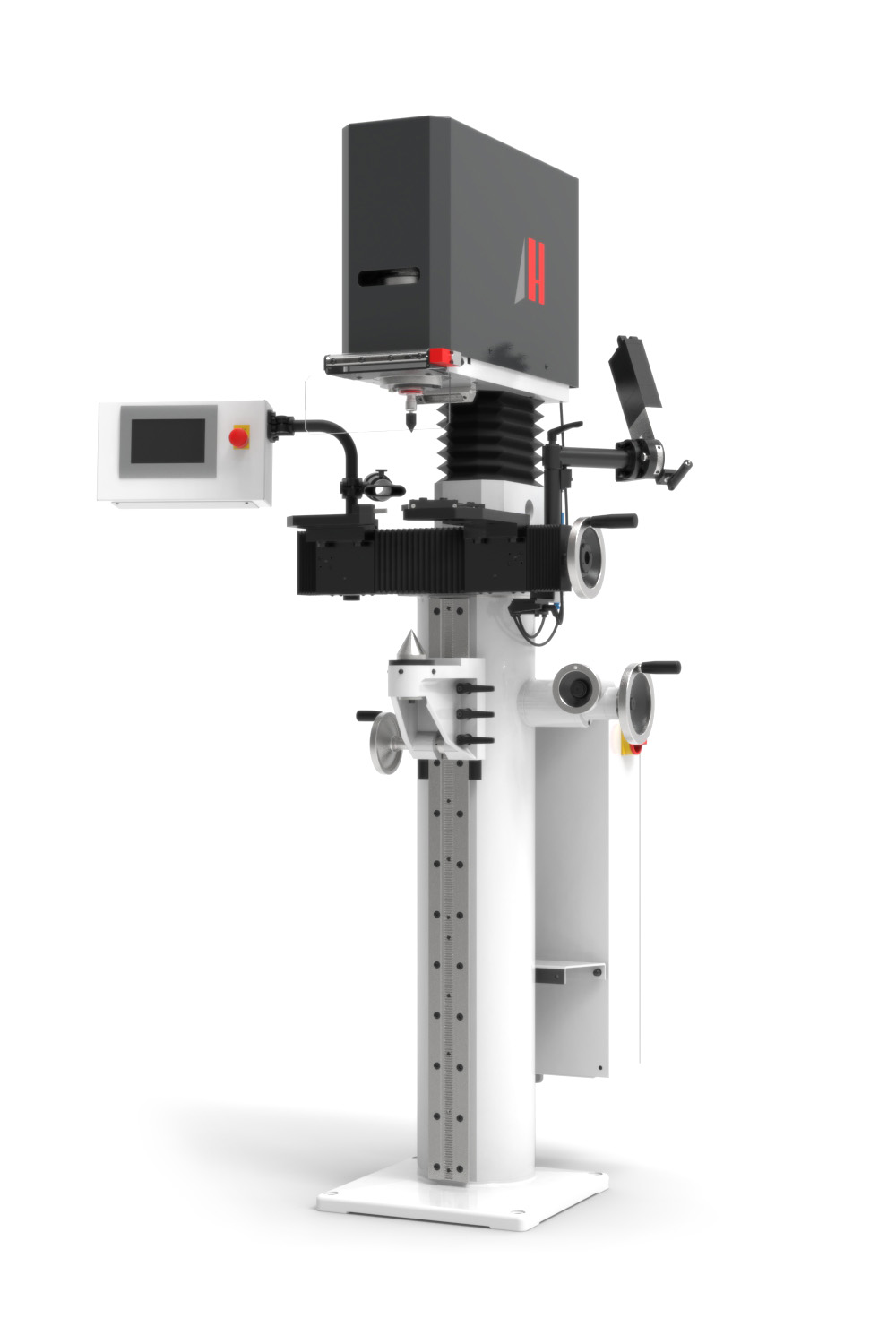

zs 200
for work pieces up to max: 200 kg | 2115 mm | 148 mm centre Ø
The ZS 200 series offers a scalable center grinding solution for applications ranging from single-part production to series manufacturing.
Easy to operate in its standard configuration, the machine can be expanded with optional CNC and automation packages.
It is particularly suited for structured production environments with increasing demands on productivity and repeatability.

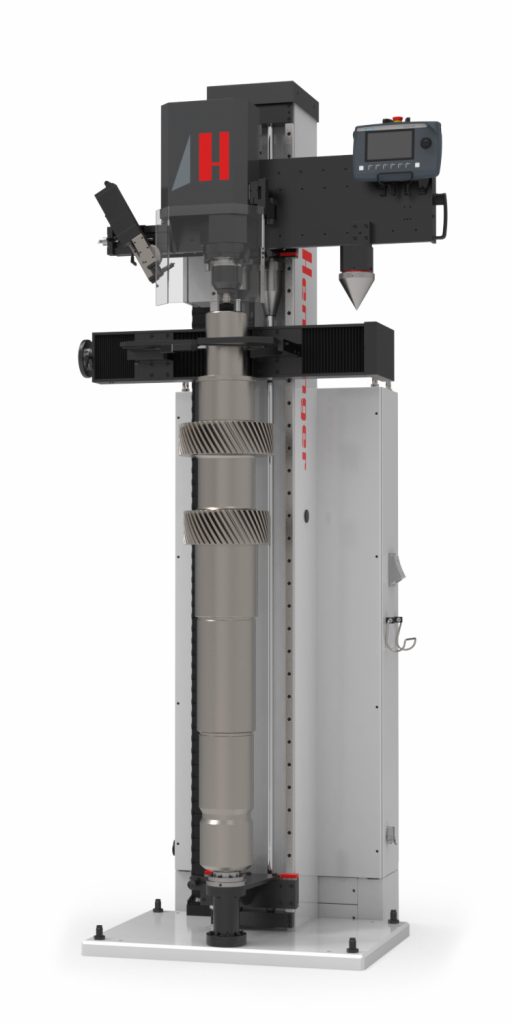

zs 1000
for workpieces up to max: 1000 kg | 3086 mm | 190 mm centre Ø
The ZS 1000 series is designed for machining large and heavy workpieces.
It enables precise alignment and machining even for components with high weights and long dimensions.
The machine is used in applications where stability and process reliability are of primary importance.
horizontal centre grinding machines
for centre grinding of horizontal work pieces

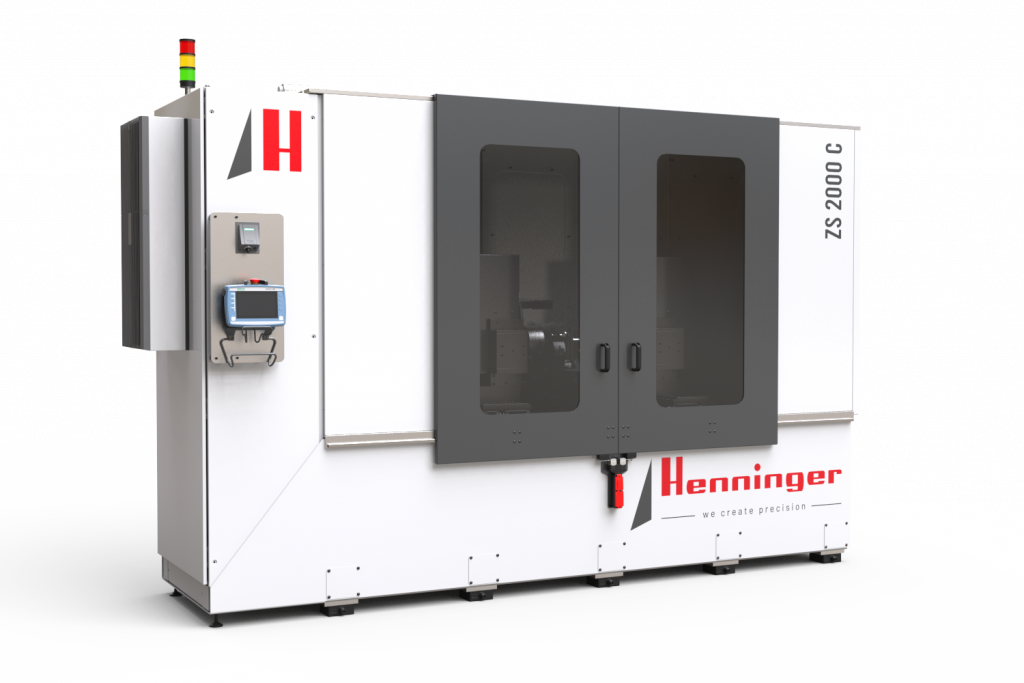

zs 2000
for workpieces up to max: 2000 Kg | 6000 mm | 190 mm center Ø
The ZS 2000 is a horizontally configured center grinding machine for applications with demanding requirements regarding productivity or workpiece dimensions.
Depending on the configuration, it is suitable either for high-volume production with short cycle times or for machining large and heavy workpieces.
Simultaneous grinding of both centers and the horizontal machine design enable highly efficient manufacturing processes.
zs 251
for workpieces of individual size and weight | 190 mm centre Ø
The ZS 251 is a center grinding unit designed for integration into existing turning operations.
It enables center holes to be ground directly on the lathe, reducing additional setup and clamping operations.
The unit serves as a flexible addition for applications focused on process integration and manufacturing efficiency.
